The slurry is transferred into the filter. The solid content in the slurry is held back by the filter cloth forming a filter cake, while the filtrate runs away to the outlet valve in the bottom plate. The filtering stage ends when the filtrate is of small quantity, which can be shortened by squeezing the filter cake by turning the height adjustable stirrer.
The cake is removed easily from the top by opening the cover and lowering the glass filter vessel, which is attached to the lifting device. The same lifting device is used to lower the bottom for accessing the filter cloth for cleaning and exchange.

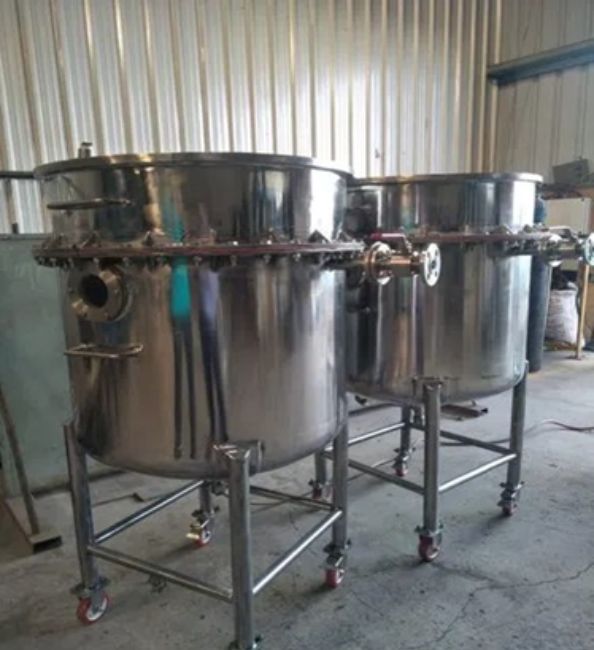

We offer efficient Nutsche Filter for liquid / solid separation in a completely non-metallic environment. The entire unit is mounted on four legs with castor wheel for easy mobility. Our Nutsche Filter provides superior corrosion resistance and permits the handling of virtually all acids and salts at a very high temperature. The filter surface eliminates contamination to increase product purity and allows an easy, fast and thorough cleaning.
| Sr.No | Product Details |
|---|---|
| 1 | Reactor: Limpeted, Jacketed, Internal Coil, with Different Type of Impellers. |
| 2 | Condenser, Shell & Tube Heat Exchanger, Double Pipe Heat Exchanger, Top Mounted Split Flow Condenser, Vaporizer, Thermosyphon Reboiler, Kettle Type Reboiler, Falling Film Evaporator. |
| 3 | Distillation Column with Internal Support & Internal Packing (Packing from Others) |
| 4 | Settler (Tube & Inclined Plate), Muti Evaporation Equipment’s. |
| 5 | Storage Tanks, Pressure Vessel, Air Receivers, Boiler Feed Water Tanks. Water seal Pot. |
| 6 | Basket Strainer, Star Leaf Filter, Nutsche Filter. |
| 7 | Scrubbers with Internals & Demister Pad with Blower. |
| 8 | Heavy duty Compressor Base Frame with Machining. |
| 9 | Distillation Equipment |
| 10 | Nutsche Filter |
| 11 | Heavy Compressor Base Frame & Testing Fixture |
